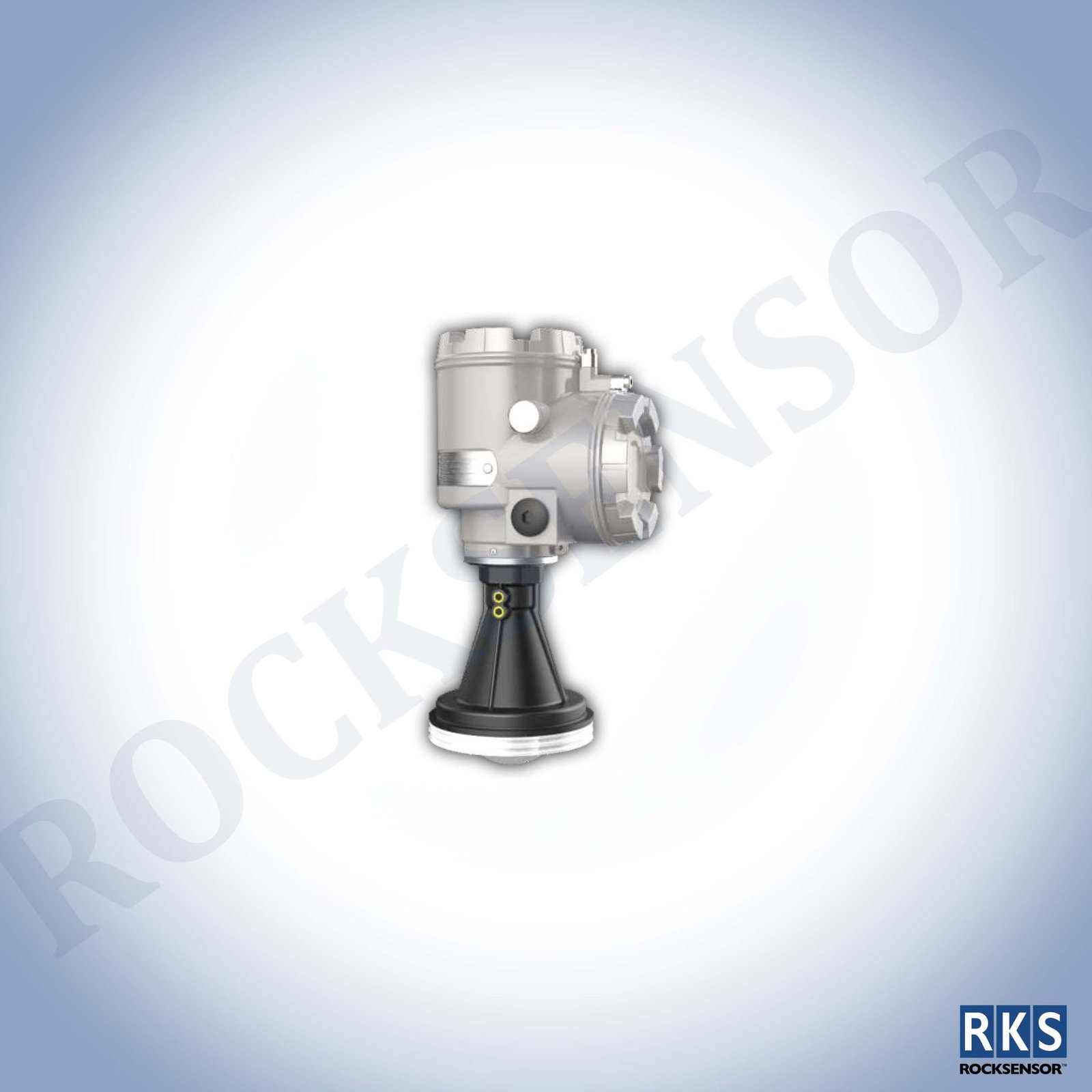

RLT6400P Level Transmitter with plastic antenna
The RLT6400P with plastic horn antenna is a radar sensor for continuous level measurement of aggressive liquids in small vessels and under simple process conditions. It’s an economic solution. The very good signal focusing ensures the use in vessels with many installations such as stirrers and heating spirals.
Product Status: Active
Enquire Now
Description
- Non-Contact Radar Level Transmitter (80GHz) with Plastic Antenna
- Antenna Material: PP
- Continuous Level Measurement of Slightly Aggressive Liquids
- Suitable for Storage Tanks / Vessels
- Beam Angle: 3°
- Process Temperature: Up to 130°C
- Accuracy: ±2mm
- Zero Dead Zone
| Parameter | Details |
|---|---|
| Measuring Range | Up to 30 m |
| Pressure | Up to 2 bar |
| Antenna Material | PP |
| Process Connection | Flange |
| Process Seal | PTFE / PP |
| Communication | HART / GPRS |
| Housing | Single / Double Chamber (Aluminium / SS316L) |
| Explosion Protection | Explosion Proof (Optional) |
| IP Protection | IP67 |
- Chemical & Fertilizers
- Steel & Power
- Cement
- Automobile
- Food Processing
- Metals & Mining
- Oil & Gas
- Pharmaceuticals
- Paper & Pulp
- Plastics & Packaging
- Renewable Energy
- Textiles
- Agriculture
- Water Treatment
- Manufacturing
- Research
