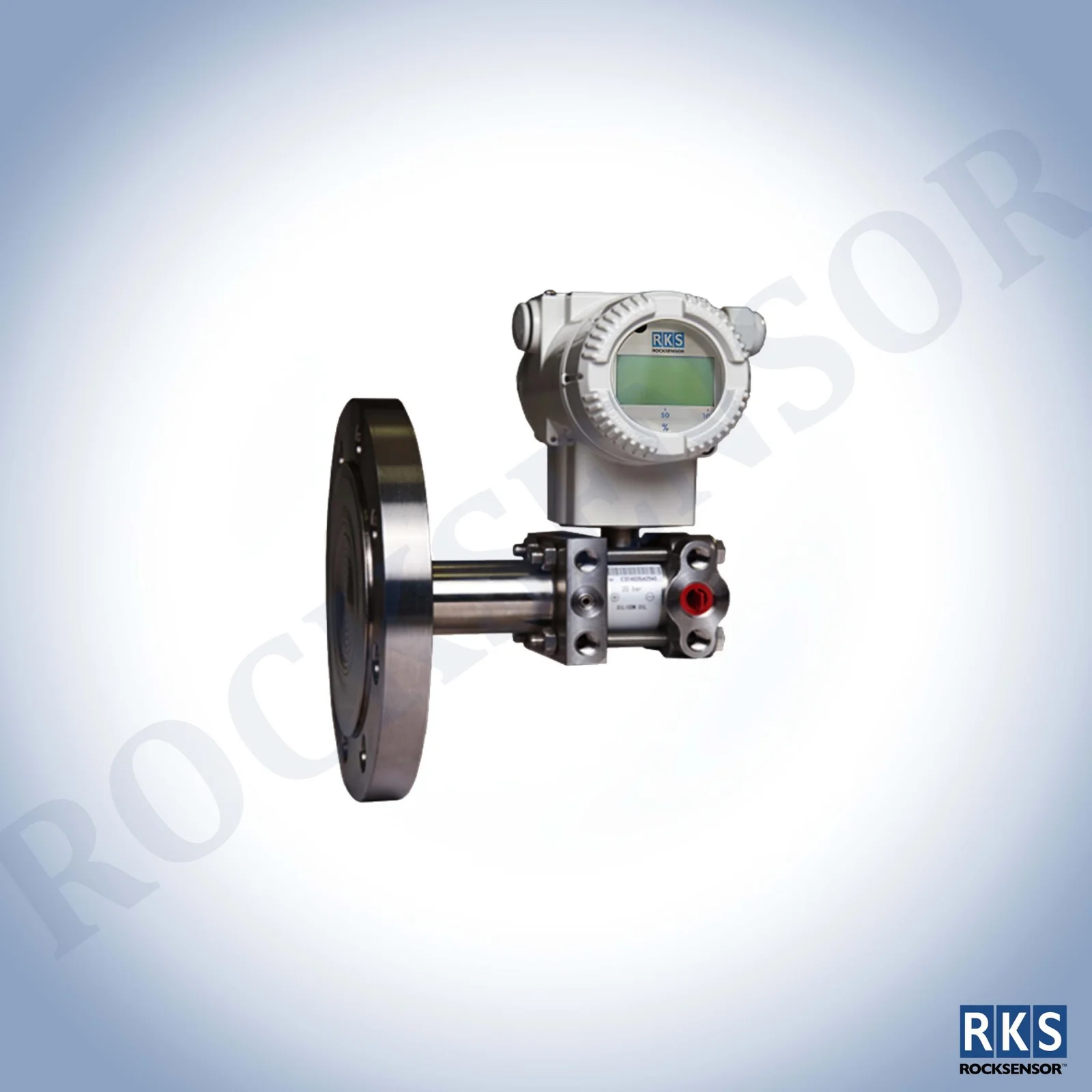

RP1001 Direct Mount Differential Pressure Transmitter
This Smart type Differential model with Direct mount connections comes with ease in mounting to meet various kinds application requirements. It is designed for application involving high temperature even upto 260 °C. The Transmitter can further be customised to meet different process connections & applications with varied conditions.
Product Status: Active
Enquire Now
Description
- High Stability Piezo-Resistive Silicon Sensor
- Span Range: 0-100Pa ~ 3MPa
- Accuracy: ±0.06%, ±0.1%
- High Temperature Capability: Up to 260°C
- Built-in Surge Protection
- Communication Protocol: HART
- Certifications: ATEX, CE, SIL, NAMUR Certified
| Medium | Gas, Steam, Liquid |
| Diaphragm |
SS316L / Hastelloy C / Gold Plated on SS316L / FEP Plated on SS316L / Tantalum |
| Filling Fluid | Silicone Oil / Fluorine Oil / Vegetable Oil |
| Flange Rating | ANSI 150 Class ~ 600 Class, DIN PN1.6MPa ~ PN10MPa |
| Diaphragm Protection | PTFE / FEP / Gold Plated |
| Housing | Die Cast Aluminium / Stainless Steel |
| Safety Protection | Intrinsic Safety / Flameproof Safety |
| Overload Performance | Excellent Performance for Overload |
| Working Pressure | Up to 40MPa |
- Chemical and Fertilizers
- Steel and Power
- Cement Industry
- Automobile Industry
- Food Processing
- Metals and Mining
- Oil and Gas
- Pharmaceuticals
- Paper and Pulp
- Plastics and Packaging
- Renewable Energy
- Others (Textiles, Agriculture, Water, Manufacturing, Research, etc.)
